ATP 5 Inch Square 60W CREE LED Work Light for Off Road Trucks Boat Farm with Wiring Harness and Mount

ATP1060W-FL – 5 inch Square CREE LED Work Light


This tough and durable ATP work light is made in China and have been tested and certified to IP67 standards; The LED circuitry is isolated so if a section of your light were ever to be damaged the remaining sections would continue to illuminate assuring the ultimate in dependability. National and International motorsport approved connectors. CREE LEDs provide high-intensity, instant on/off lighting at the flick of a switch. The SEP Circuitry (Super-Efficient Power) allows 97% Direct-to-LED power transfer; The Hybrid Reflector Lens Combo (patented HRLC) is 94% efficient for more light with less power which translates to longer life; Oversized Heat Sink keeps LED’s running cooler and brighter while lasting longer.

Key Specifications:


. Model Number: ATP1060W-FL

. Input Voltage: 10-30V DC

. Life Span: 30,000+ hrs

. IP67, EMC, CE, RoHS Certified

. Over/Under Voltage Protection

. Luminous Flux: 4800 lumens

. Color Temperature: 6000K

. Beam Pattern: 90 deg Flood

. Housing Material: Die-cast Aluminum Alloy Housing

. Housing Color: Black

. Lens Material: Polycarbonate

. Mounting Hardware: 304 Stainless Steel

. Electronics: Epoxy Encapsulated, Integrated Technology

. Operating Temperature: -40 deg F to +140 deg F

. Power Consumption: 60W (6 CREE LEDs @ 10W each) draws [email protected] for fully charged 12V lead acid battery

Work Light Package includes:

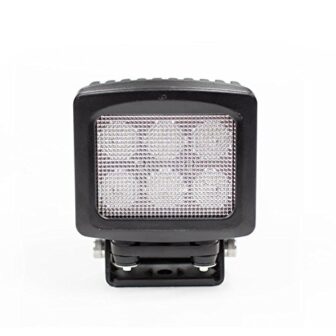

1 * 60W 5 inch square floodlight

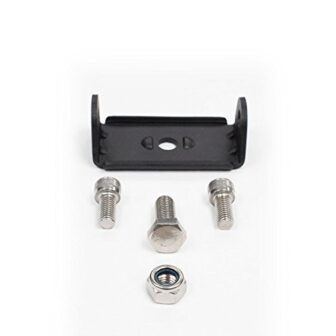

1 * mounting bracket/hardware kit

1 * Complete Wiring Harness (switch, relay, fuse, connector)

Includes wiring harness with 12VDC relay, On/Off rocker switch, inline fuse, DT Connector with silicone seals rated for harsh environmental conditions, mounting hardware, install instructions

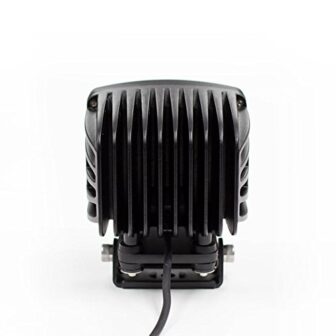

Heavy duty die-cast aluminum housing with custom molded rubber seals made for harsh conditions to keep dust and water out. Tested 100% waterproof in three feet of water for 30 minutes
Input Voltage: 10-30V DC; Luminous Flux: 4800 lumens; Color Temperature: 6000K
Beam Pattern: 90 degrees of flood; Operating Temperature: -40 deg F to +140 deg F
Power Consumption: 60W draws [email protected] for fully charged 12V lead acid battery
